FPV 5.8G 600mW 48 Channels Wireless AV Tx & Rx TS832 RC832

0 out of 5 stars Write a Review.
    Free Shipping Option
  • Availability :
  • In stock
  • Warranty :
  • None
  • Model:
  • SYN-3870
Rs.3,599.00 384 (Incl. GST)
325 Excluding 18% GST
GST Input Tax Credit of 59 Available. (Know More)


Add to Cart:




  • Description
  • Download & Details
  • Reviews

Transmitter TS832:

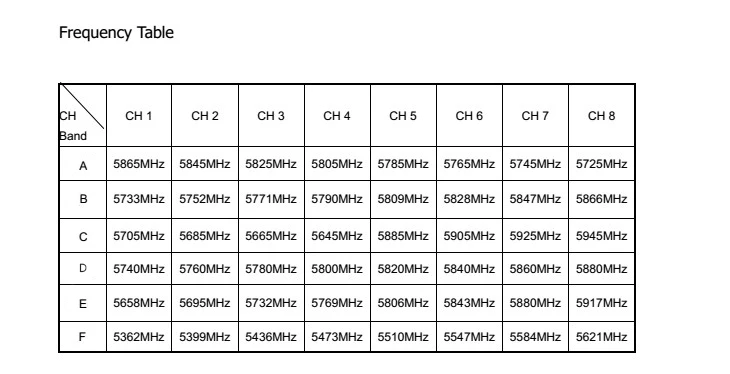

New version upgrade to 48 channels:cover A,B,C,D,E,F band,and will be more stable and better heat dispersion.600mW long range AV wireless system,about 5km range in the open area.Two switching buttons: CH button for frequencies channels switching, FR button for frequencies bands switching.Frequency control:built-in frequency and phase lock loop.Independent video and audio signal outputs,real-time positioning which frequency band and which channel received; Power off memory: Replay the very last frequency band and channel.


Specification:

  • TS832 transmitter Antenna
  • Gain: 2db
  • frequency: 5.8G
  • forwarding Power: 600mA
  • Power consumption: 7.4-16V (3S Lipo suggested)
  • Video format: NTSC / PAL Auto
  • Operating current: 220mA at 12V
  • bandwidth Audio: 6.5 M
  • bandwidth video: 8 M
  • weight: about 22g

4(58)

Receiver RC832:

The RC832 plus Receiver is nice and small in size for easy integration into your ground station, but big in quality and features. The receiver uses the same two-button interface as the TS832 Transmitter making channel swapping a breeze. There are two independent AV outputs for both audio and video. So you can use a monitor and set record your flight,for when your significant other asks where you were for the last 4 hours. Powering the receiver at the field is as easy as plugging in a 3 cell lipoly into the included prewired cable with mini JST. It just doesn't get any simpler than this.


Specification:

  • Video format supported: NTSC/PAL
  • Antenna connection: RP-SMA, jack
  • Power input: 12V
  • Working current: 200mA max
  • Antenna impedance: 50
  • Rx sensitivity -90dBm
  • Video impedance: 75
  • Video format: NTSC/PAL auto
  • bandwidth video: 8 M
  • weight: about 22g

  • Model: SYN-3870
